Ecuador
| Participants | |
|---|---|
| Owner | Empresa Pública Metropolitana de Agua Potable y Saneamiento |
| Contractor | Eseico S.A |

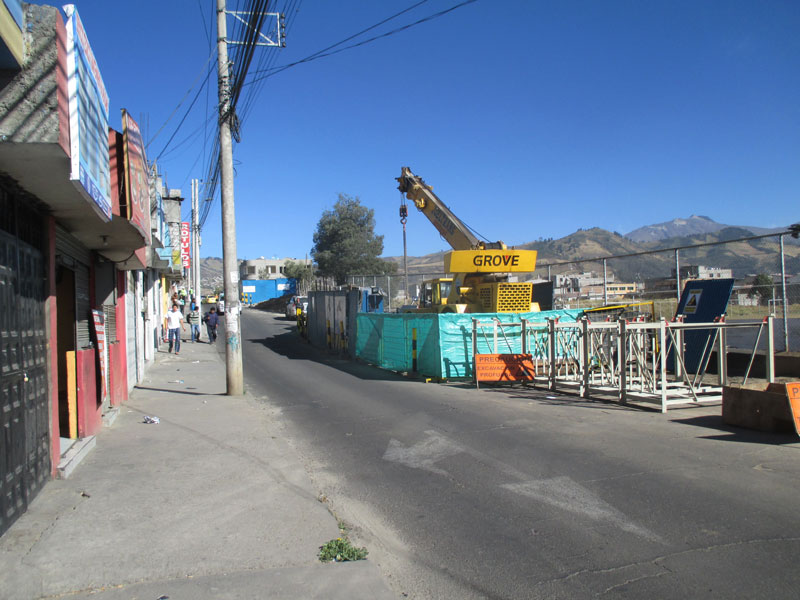

| Location of the Job Site | Quitumbe, Quito, Ecuador |
| Tender | |
| Short Description of Job | Pipe jacking for gravity sewers ID 350 (OD 400 mm) and ID 500 (OD 610 mm) GRP Pipe along Avenida Guayani to the new sewage treatment plant of Quitumbe |

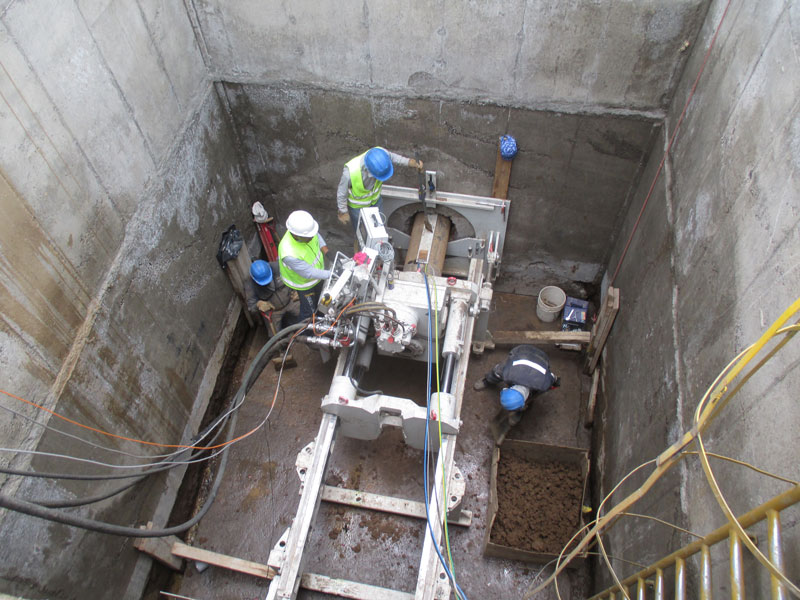

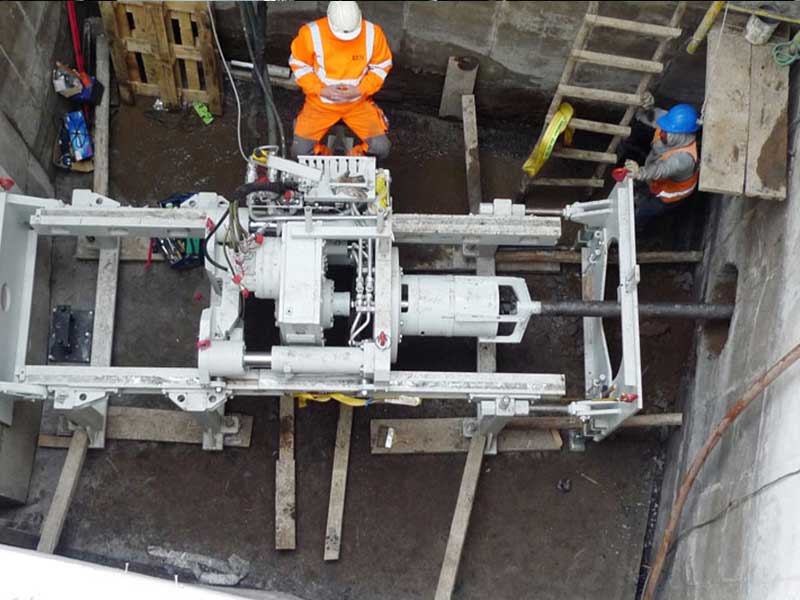

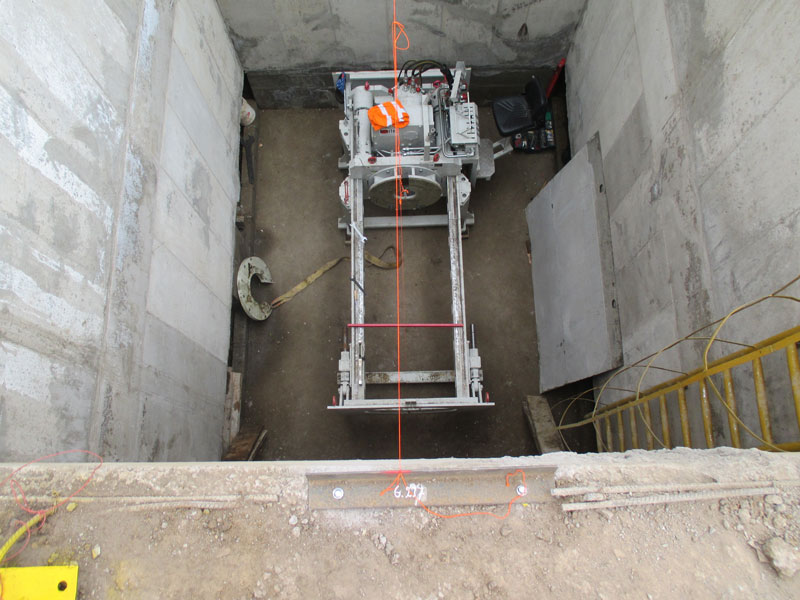

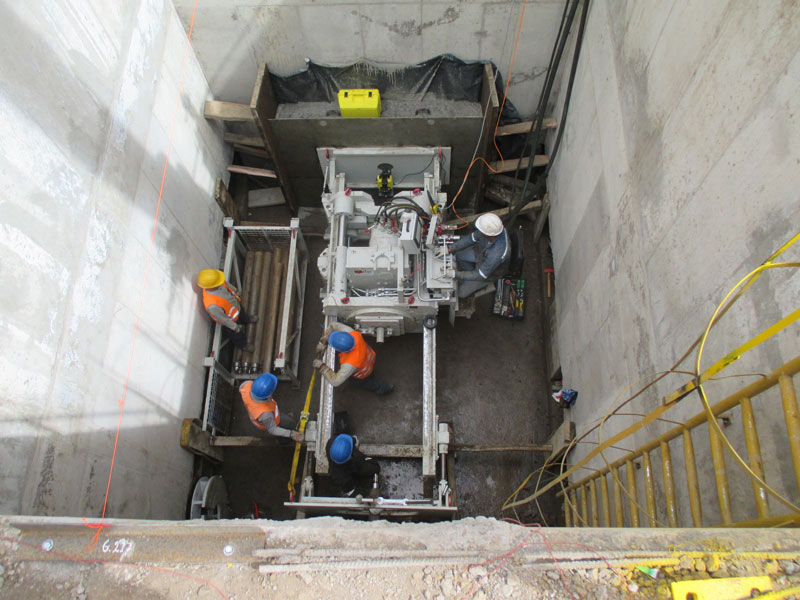

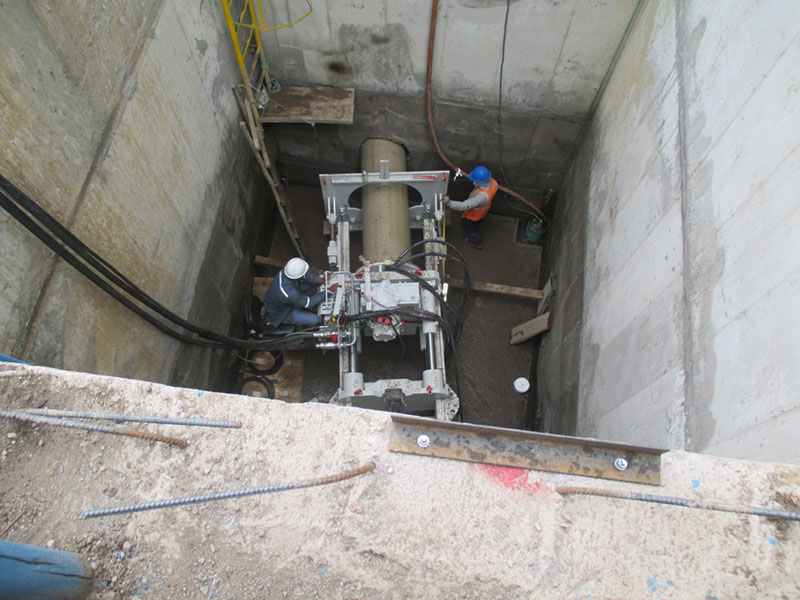

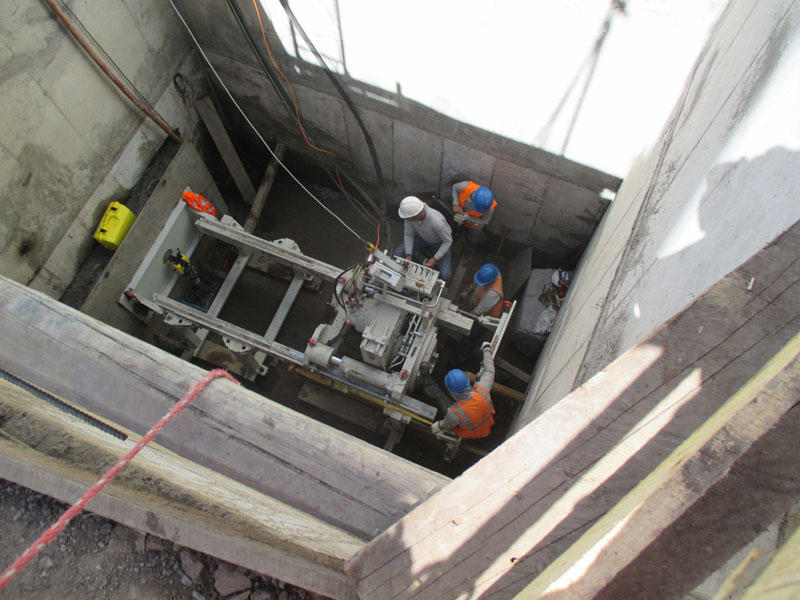

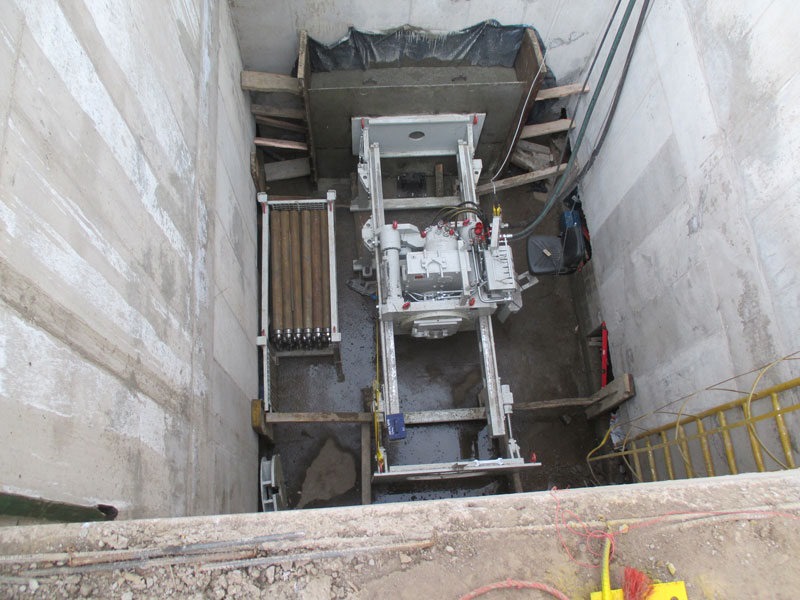

| Specifications for Tenders | 1000 m guided auger boring for gravity sewers ID 350 and ID 500 with pilot tube method |
| Alternative Methods proposed by the Constructor | Guided auger boring ID 350 and ID 500 with pilot tube method and Front Steer |
| Ground conditions | |
| Described Ground in the Ground Report | Sand and gravel with pumice |
| Encountered Soils | Sand and gravel with pumice |
| Depth of Coverage | Up to 8 m |
| Accuracy | ± 25 mm for line and grade |
| Time for Job or Production Rate | June 2015 until November 2015 |
| Driving Length | Up to 50 m |
