Denmark
| Participants | |
|---|---|
| Owner | DSB Danske Statsbaner |
| Contractor | Danboring Erhverv Aps |
| Location of the Job Site | Elkärvej 81, 9381 Suldted |
| Tender | |

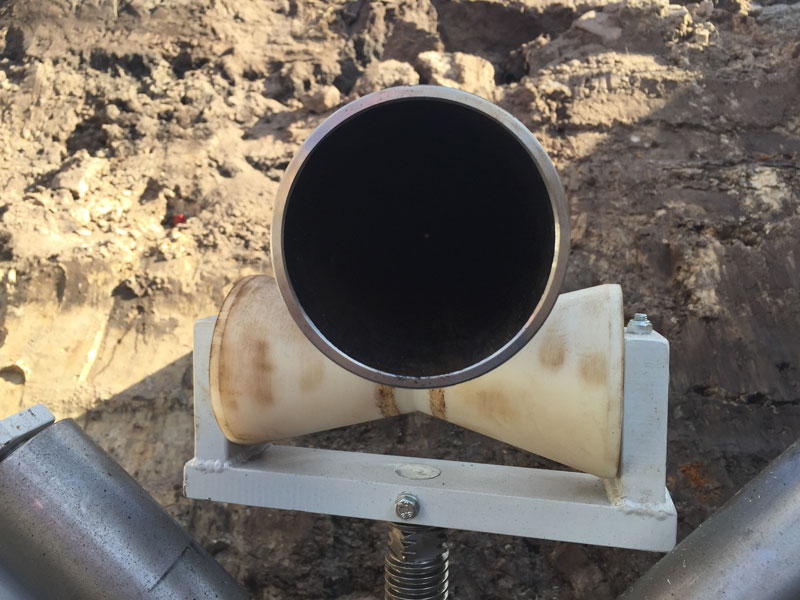

| Short Description of Job | Crossing underneath rail tracks for municipal heating lines Steel pipe 406 mm as sleeve for heating system |

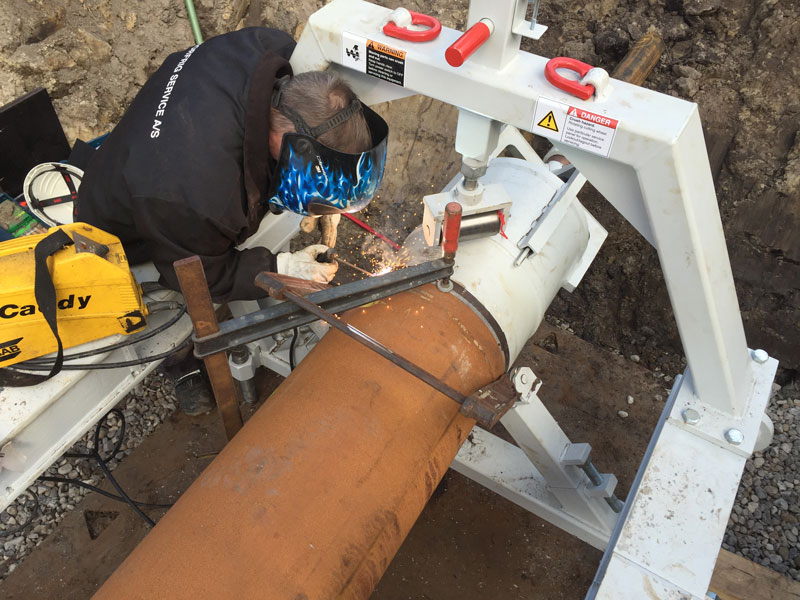

| Specifications for Tenders | Steel sleeve 406 mm for crossing 25 m roughly 3 to 4 m underneath rail tracks in soft soil |

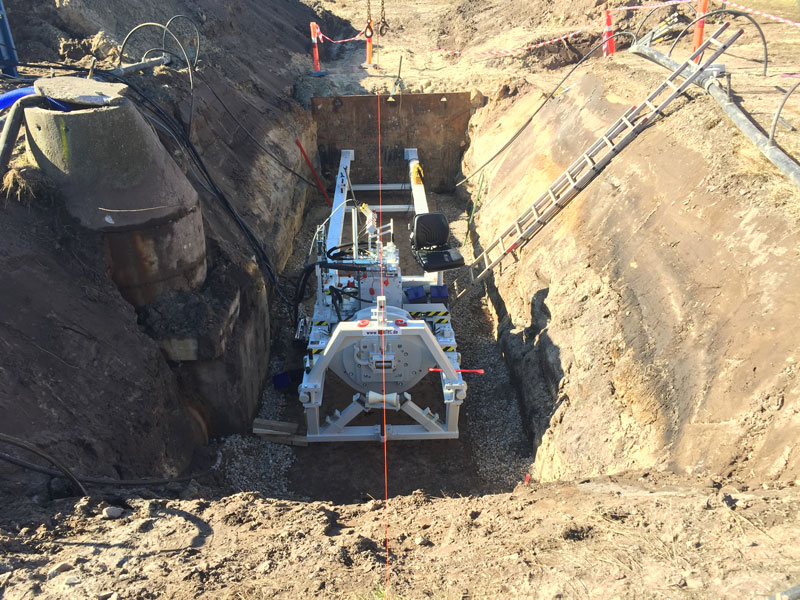

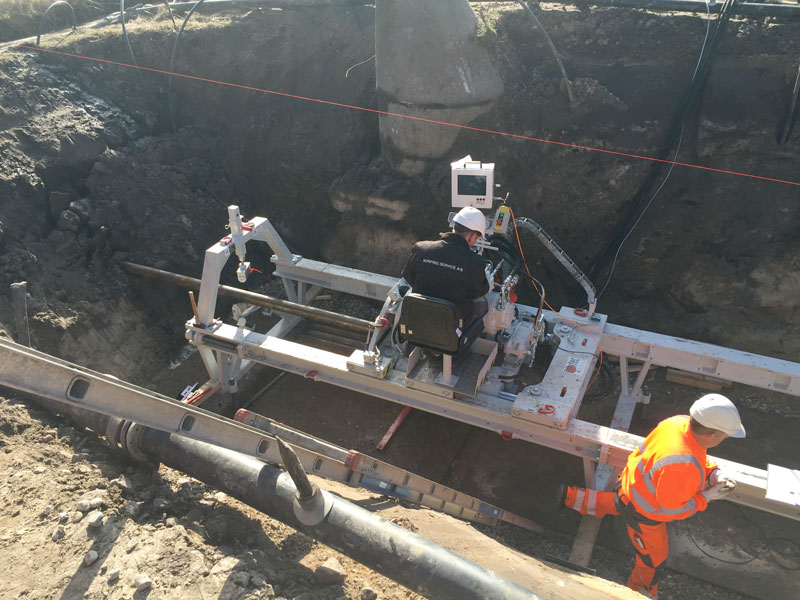

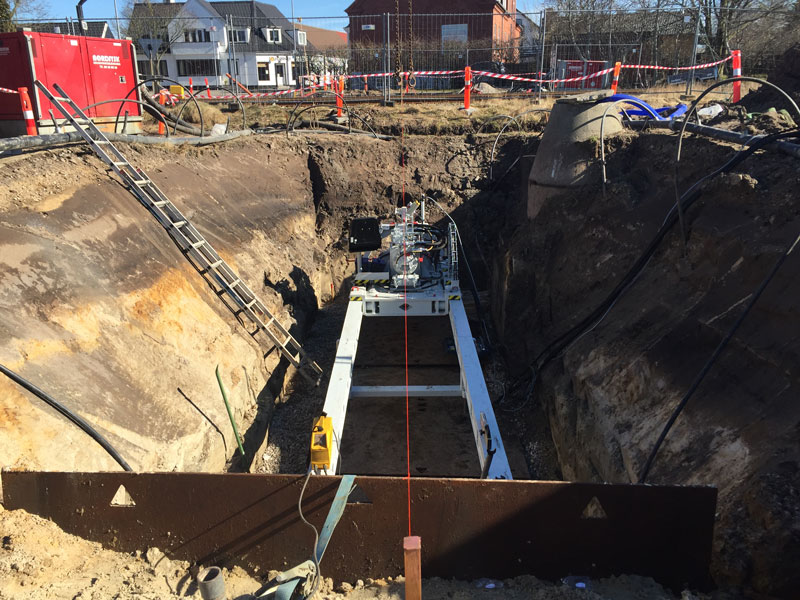

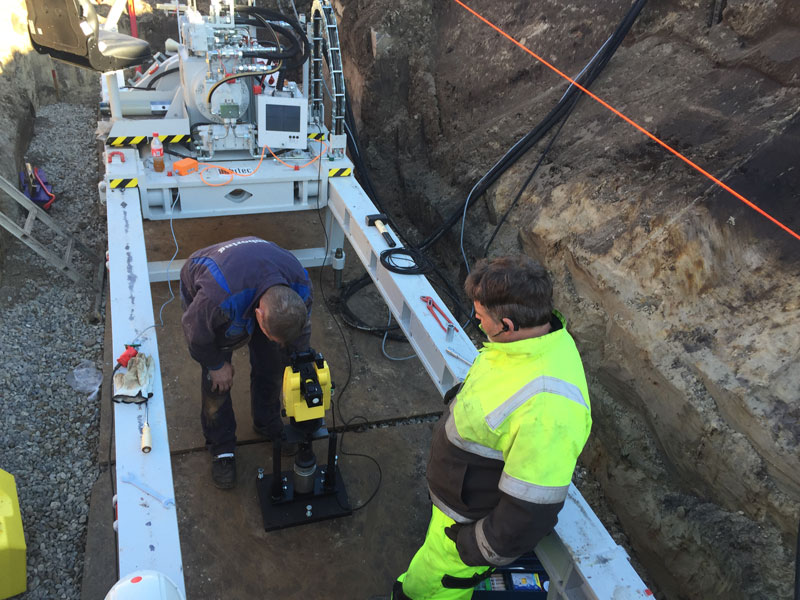

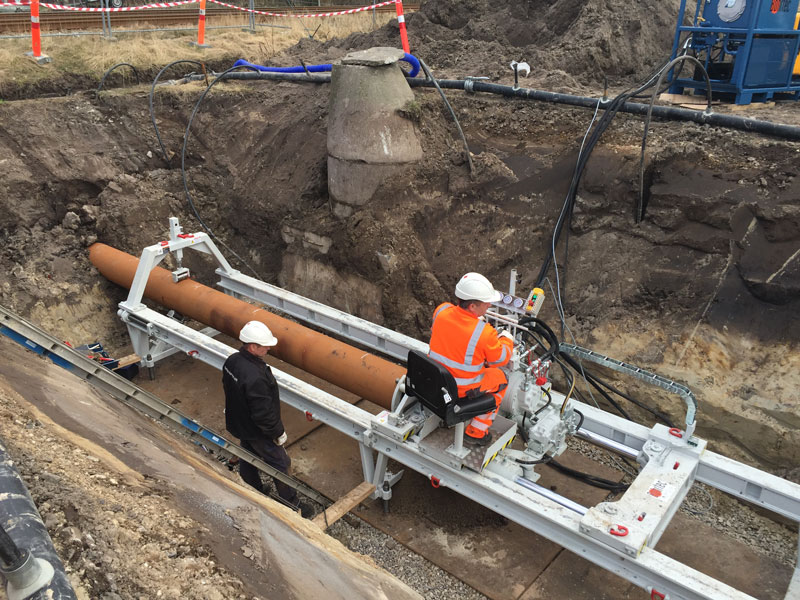

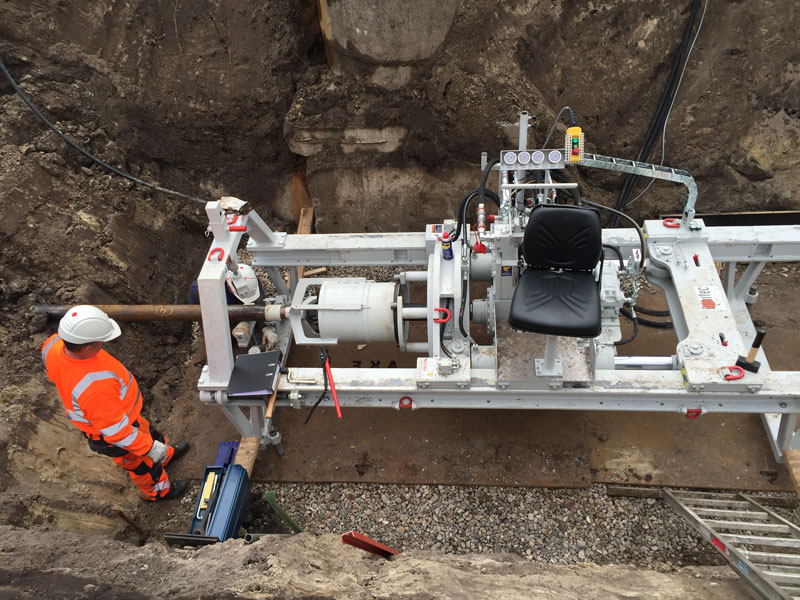

| Alternative Methods proposed by the Constructor | Pilot pipe jacking |
| Ground conditions | |
| Described Ground in the Ground Report | Soft ground |

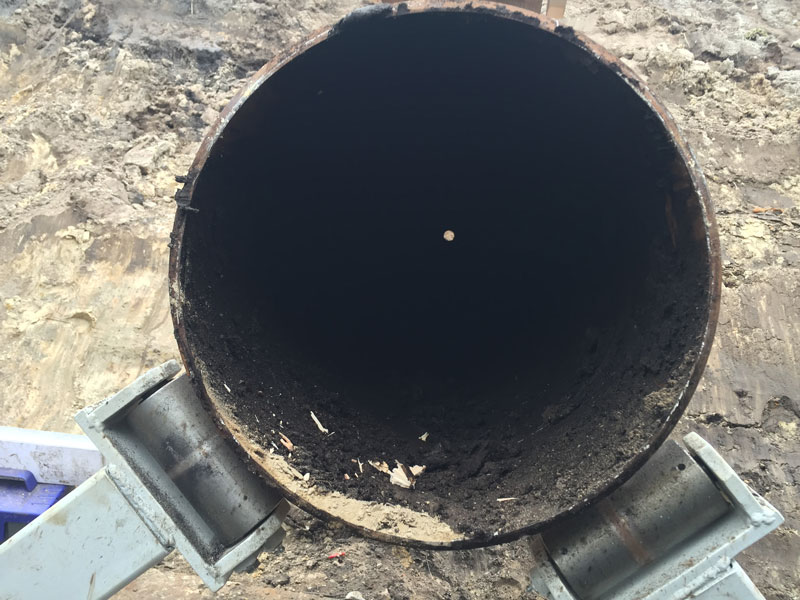

| Encountered Soils | Sand and silt and some small stones |
| Depth of Coverage | 3,8 m |
| Accuracy | ± 25 mm |
| Time for Job or Production Rate | 3 days in total including setup and removing machinery from job site |
| Driving Length | 25 m |
